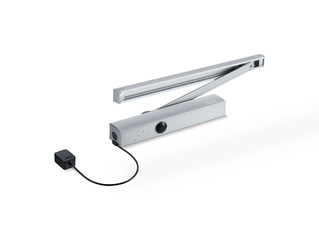

TS 5000 EFS complete package * Overhead door closer with guide rail EN 3-6 with electric free swing function
- Closing force can be variably adjusted from the front
- Visual closing force display ensures correct setting
- Closing seed can be adjusted from the front via valve
- Latching action can be adjusted from the front via valve
- Electric free swing function
- Door closer, can be used for right and left hand doors
Application Areas
- Fire and smoke protection doors
- Right and left single-action doors
- Single-action doors up to 1400 mm leaf width
- Door leaf installation hinge side
- Hold-open systems with integrated hold-open function with free swing
- Barrier-free access in accordance with DIN 18040
Technical data
| TS 5000 EFS complete package | |
| Closing force in accordance with EN 1154 | EN 3 - 6 |
| Leaf width (max.) | 1400 mm |
| Type of installation | Door leaf installation hinge side |
| Opening angle (max.) | 180 ° |
| Identical design for DIN left and DIN right | Yes |
| Input voltage | 24 V DC |
| Electrical power consumption | 1 W |
| Duty rating | 100 % |
| Residual ripple | 20 % |
| IP rating | IP20 |
| Standard conformity | EN 1154:1996/A1:2002/AC:2006, EN 1155 |
| Suitability for fire protection doors | Yes |
| Mounting plate with hole pattern in accordance with EN 1154 supplement | Yes |
| Length | 327 mm |
| Width | 47 mm |
| Height | 60 mm |
| Free swing area | 85 ° - 160 ° |
| Closing force adjustable | Yes, stepless |
| Adjustable closing speed | Yes |
| Latching action adjustable | Yes, via valve |
| Back check integrated | No |
| Position of closing force adjustment | Front |
| Visual closing force display | Yes |
| Safety valve againts overload | Yes |
| Thermo-control valves | Yes |
| opening restrictor upgradable | Yes |
| Hold-open function | Electrically, for free swing function |

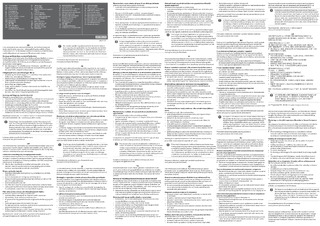

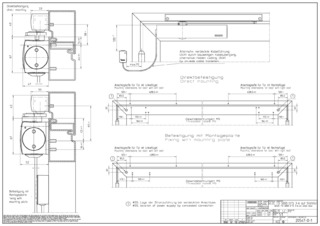

Downloads
LABELLING OBLIGATION: © GEZE GmbH
LABELLING OBLIGATION: © GEZE GmbH

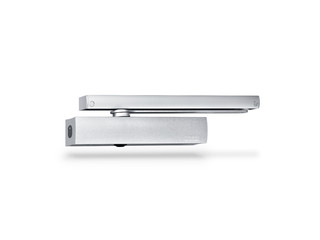

Variants & Accessories
